Contempo Dual Arm Pendants
- Increased arm width
- For greater reach and rotation
- Highly adaptable for critical care applications
- Increased flexibility and movement

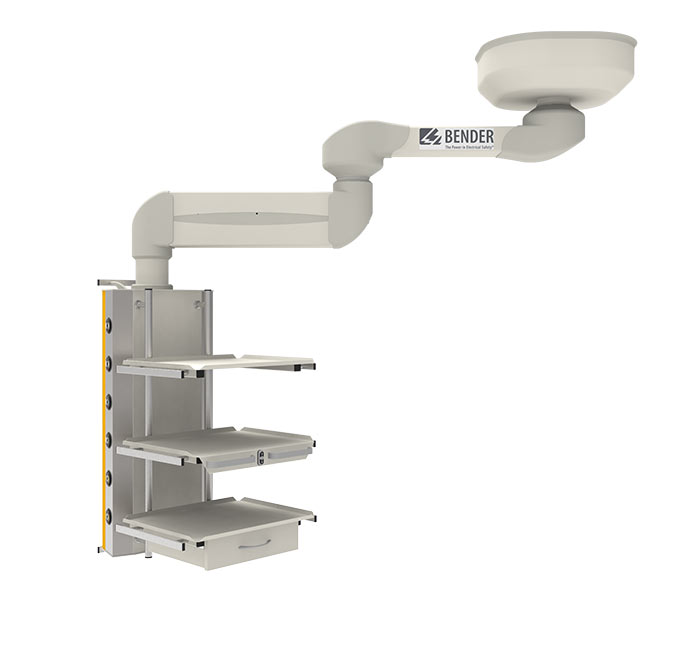

Bender dual arm Class 2 B ceiling mount pendants provide even greater supply of equipment and services to the patient area. They are suited to demanding and complex care situations where a high volume of equipment and personnel are required to support the patient.
Dual arm pendants are supplied with two multimovement or articulating rotational arms with 330° rotation from all joints. Multimovement arms offer great scope for lateral and horizontal movement, while articulating arms provide a lateral motion only.
For maximum distribution of services, dual arm pendants can also be configured in a tandem arrangement.
![[Translate to English:] Contempo dual arm pendant](/fileadmin/_processed_/a/4/csm_Dual-arm-multimovement-OK07_57-source-head-A_a7cceeb63c.jpg "[Translate to English:] Contempo dual arm pendant")
![[Translate to English:] Contempo dual arm pendant](/fileadmin/_processed_/3/5/csm_Dual-arm-multi-movement-pendant-_OK07-57_-Source-Head-Z_54944a567e.jpg "[Translate to English:] Contempo dual arm pendant")
![[Translate to English:] Contempo dual arm pendant](/fileadmin/_processed_/1/a/csm_Dual-arm-articulating-OK07_28-source-head-A_0f054cee02.jpg "[Translate to English:] Contempo dual arm pendant")
![[Translate to English:] Contempo dual arm pendant](/fileadmin/_processed_/d/9/csm_Dual-arm-articulating-OK07-28-Source-Head-Z_6c87ab894c.jpg "[Translate to English:] Contempo dual arm pendant")
![[Translate to English:] Contempo dual arm pendant](/fileadmin/_processed_/a/4/csm_Dual-arm-multimovement-OK07_57-source-head-A_c24239a15a.jpg "[Translate to English:] Contempo dual arm pendant")
![[Translate to English:] Contempo dual arm pendant](/fileadmin/_processed_/3/5/csm_Dual-arm-multi-movement-pendant-_OK07-57_-Source-Head-Z_b97bc68b29.jpg "[Translate to English:] Contempo dual arm pendant")
![[Translate to English:] Contempo dual arm pendant](/fileadmin/_processed_/1/a/csm_Dual-arm-articulating-OK07_28-source-head-A_f3d18a8850.jpg "[Translate to English:] Contempo dual arm pendant")
![[Translate to English:] Contempo dual arm pendant](/fileadmin/_processed_/d/9/csm_Dual-arm-articulating-OK07-28-Source-Head-Z_887ccb8b16.jpg "[Translate to English:] Contempo dual arm pendant")
- Increased arm width
- For greater reach and rotation
- Highly adaptable for critical care applications
- Increased flexibility and movement
Bender dual arm Class 2 B ceiling mount pendants provide even greater supply of equipment and services to the patient area. They are suited to demanding and complex care situations where a high volume of equipment and personnel are required to support the patient.
Dual arm pendants are supplied with two multimovement or articulating rotational arms with 330° rotation from all joints. Multimovement arms offer great scope for lateral and horizontal movement, while articulating arms provide a lateral motion only.
For maximum distribution of services, dual arm pendants can also be configured in a tandem arrangement.
Features
- Premium grade aluminium construction
- Rotational options: Multimovement / Articulating
- Fitted with medical rods and rails
- Source head options: Up to 6 types available (see ordering information)
- Electrical sockets, gas and data outlets: Variations available, specify at ordering
- Blue sockets positioned at a 45° angle for wire and cable space
- A range of bespoke arm lengths
- 330° rotation from joints
Applications
- Critical care areas
- Operating theatres
- Intensive Care Unit
Contempo Dual Arm Pendants Variant(s)

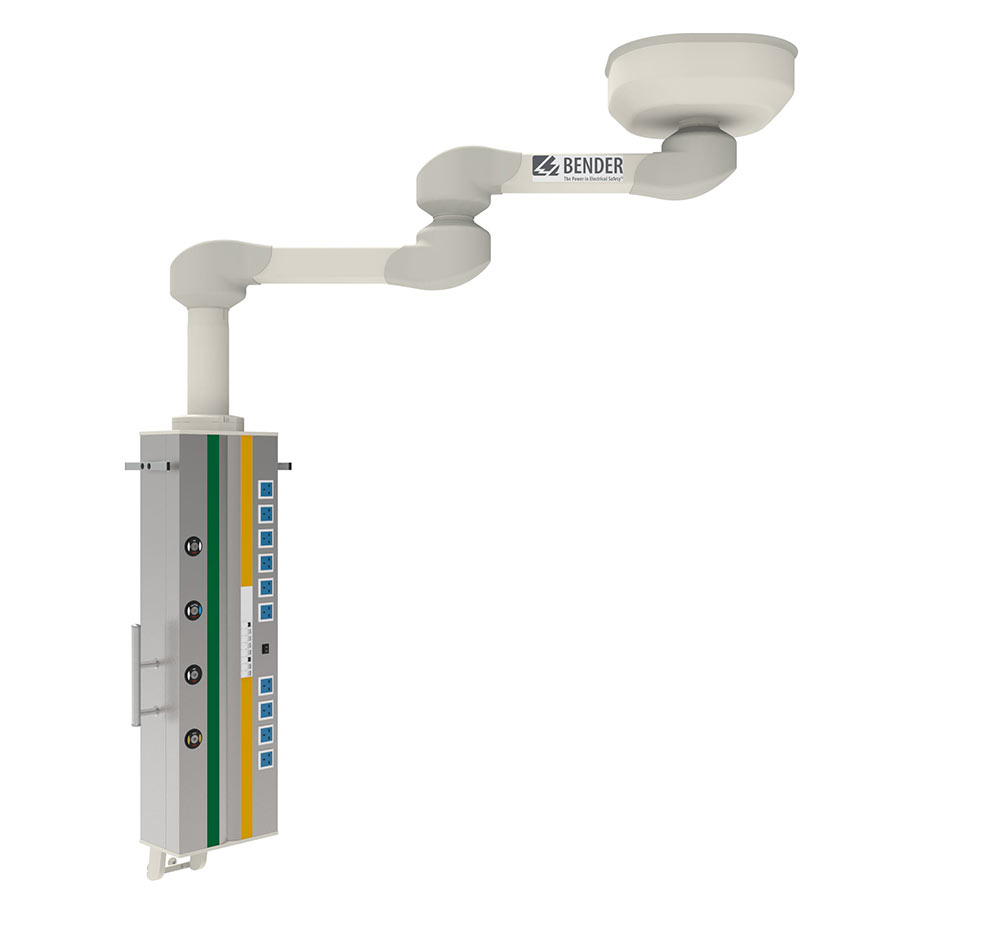

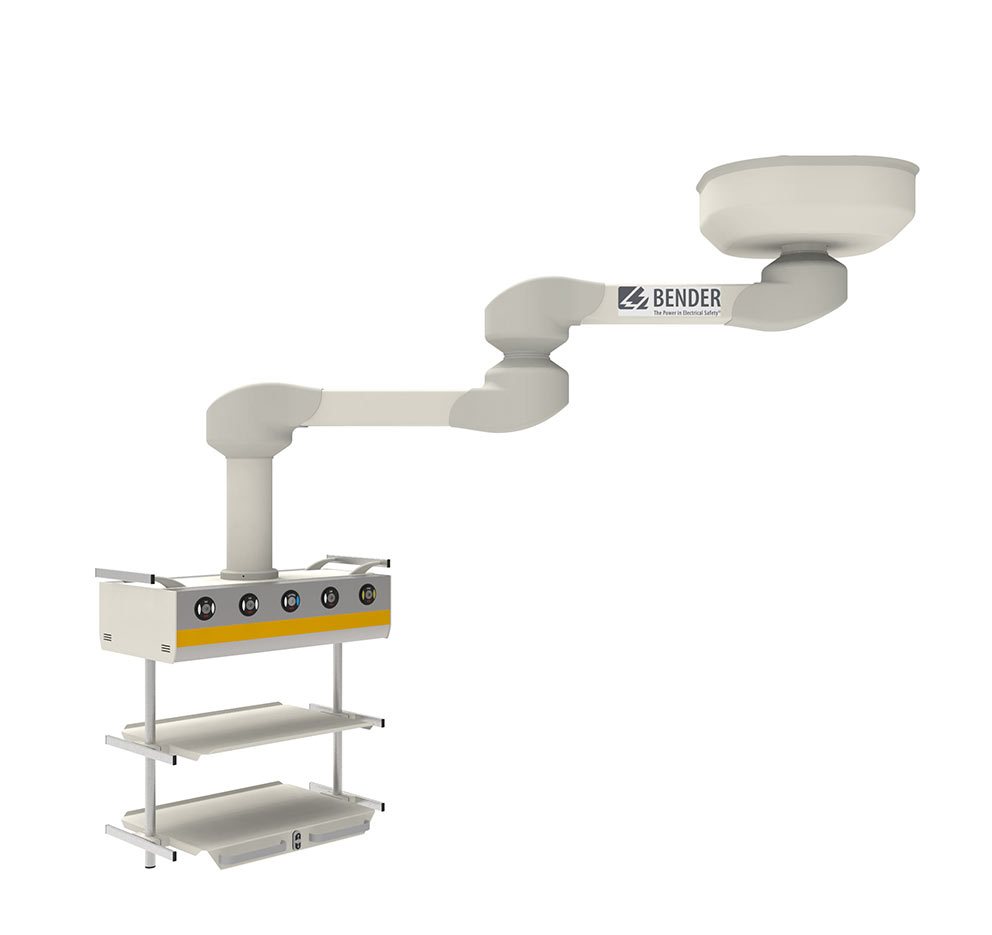

OKO7-28 - Dual arm articulating pendant
| Arms | Lower Articulating Arm | Upper Articulating Arm |
|---|---|---|
| Payload | 150 kg | 150 kg |
| Weight | - | - |
| Brake | pneumatic | pneumatic |
| Ceiling load | -Nm, -N | -Nm, -N |
| Source head | L06, L10, L12, L15, A, Z | L06, L10, L12, L15, A, Z |
| Arm length options | 450, 600, 800 mm | 450, 600, 800,1000 mm |
| Rotation | 330° | 330° |
| Source head options | L06 | L10 | L12 | L15 | A | Z |
|---|---|---|---|---|---|---|
| Maximum electrical sockets | 6 | 12 | 15 | 20 | 8 | 15 |
| Maximum data sockets | 12 | 20 | 24 | 30 | 13 | 25 |
| Maximum gas outlets + AGSS | 5 | 8 | 10 | 12 | 5 | 10 |
| Payload (kg) | 150kg | 150kg | 135kg | 150kg | 150kg | 200kg |
| Weight (kg) | 55kg | 70kg | 60kg | 100kg | 50kg | - |
| Medical rails | 2 | 2 | 2 | 2 | 2 | 2 |
| Medical rods | 2 | 2 | 2 | 2 | - | - |

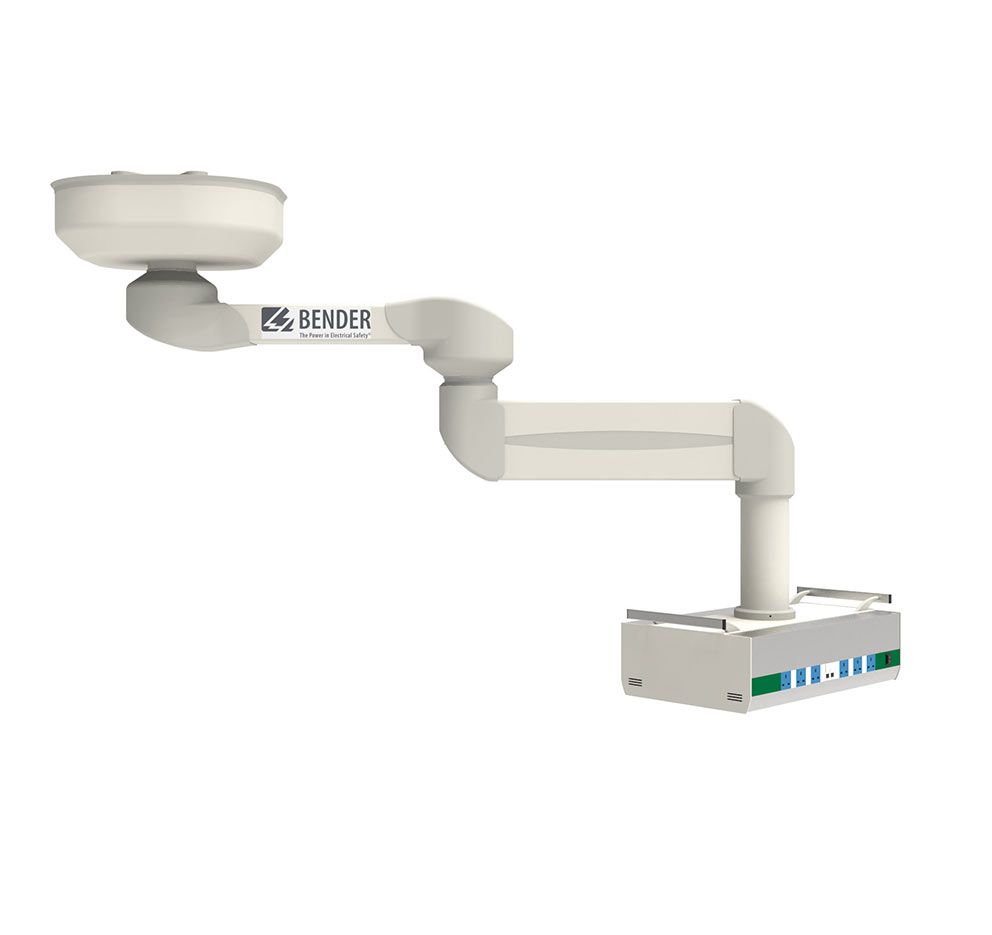

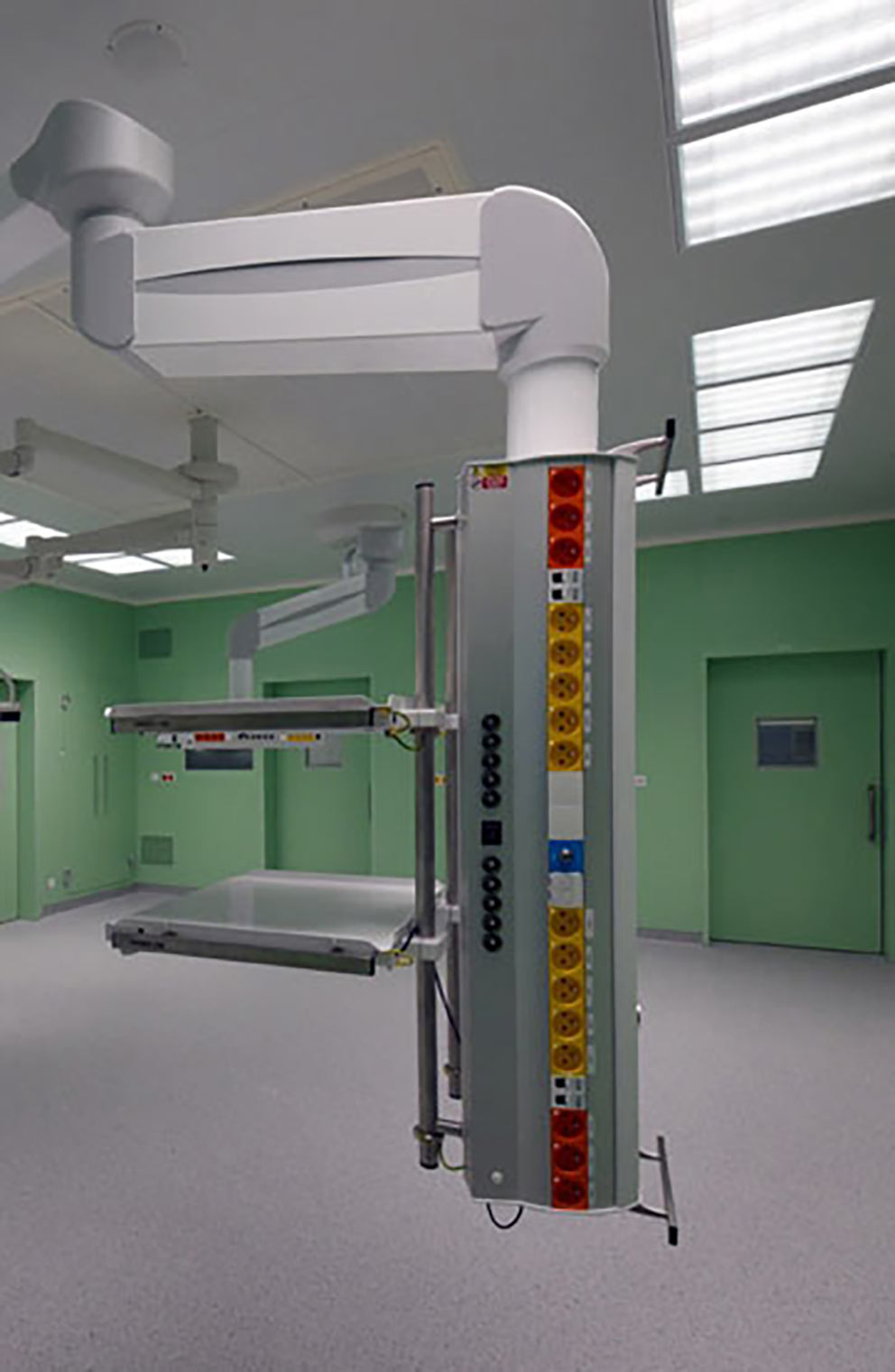

OK07-57 - Dual arm multi-movement pendant
| Arms | Lower Multimovement Arm | Upper Multimovement Arm |
|---|---|---|
| Payload | 150 kg | 150 kg |
| Weight | - | - |
| Brake | pneumatic | pneumatic |
| Ceiling load | -Nm, -N | -Nm, -N |
| Source head | L06, L10, L12, L15, A | L06, L10, L12, L15, A |
| Arm length | 800 mm | 450, 600, 800,1000 mm |
| Rotation | 330° | 330° |
| Lift | 500 mm | - |
| Source head options | L06 | L10 | L12 | L15 | A |
|---|---|---|---|---|---|
| Maximum electrical sockets | 6 | 12 | 15 | 20 | 8 |
| Maximum data sockets | 12 | 20 | 24 | 30 | 13 |
| Maximum gas outlets + AGSS | 5 | 8 | 10 | 12 | 5 |
| Payload (kg) | 150kg | 150kg | 135kg | 150kg | 150kg |
| Weight (kg) | 55kg | 70kg | 60kg | 100kg | 50kg |
| Medical rails | 2 | 2 | 2 | 2 | 2 |
| Medical rods | 2 | 2 | 2 | 2 | - |
Optional Accessories for Contempo Dual Arm Pendants
| There is a wide range of optional accessories available: |
|---|
| Ramps |
| LED Examination Lamp |
| Shelves |
| Shelf Wire Baskets |
| Medical Rails |
| Monitor Holders |
| Refracted Arms |
| Infusion Racks |
| Infusion Stands |
| Cable Holders |
