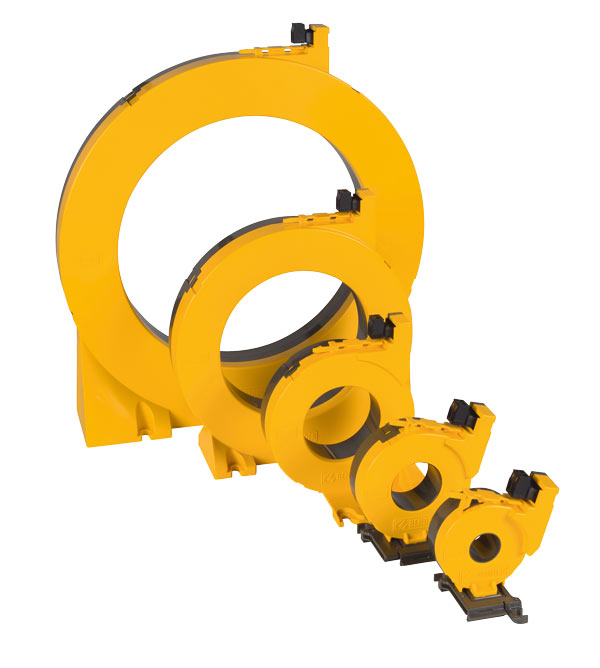

LINETRAXX® CTAC series
The highly sensitive CTAC series measuring current transformers in combination with RCM or RCMS series residual current monitors and evaluators convert AC currents into an evaluable measurement signal.
They are also suitable for use in insulation fault location systems for IT systems (EDS). The current transformers measure the locating current generated by a PGH locating current injector or an ISOMETER® iso685. In combination with EDS series insulation fault locators, the locating current is converted into an evaluable measurement signal.
The connection to the respective devices is made via a two-wire cable.
The highly sensitive CTAC series measuring current transformers in combination with RCM or RCMS series residual current monitors and evaluators convert AC currents into an evaluable measurement signal.
They are also suitable for use in insulation fault location systems for IT systems (EDS). The current transformers measure the locating current generated by a PGH locating current injector or an ISOMETER® iso685. In combination with EDS series insulation fault locators, the locating current is converted into an evaluable measurement signal.
The connection to the respective devices is made via a two-wire cable.
Features
Measuring current transformers CTAC…
- For RCMS460/490 residual current monitoring systems
- For RCM420 residual current monitors
- For EDS440 and EDS460/490 insulation fault locators in AC and DC systems
Measuring current transformers CTAC…/01
- For EDS441 and EDS461/EDS491 insulation fault locators
Applications
Measuring current transformers CTAC…
- Connection to the respective residual current monitoring system RCMS, residual current monitors RCM or to insulation fault location systems EDS
Measuring current transformers CTAC…/01
- Connection to the respective EDS441, EDS461 und EDS491 and insulation fault locator
LINETRAXX® CTAC series Variant(s)
| Type | Mounting | Inside diameter | Art. No. |
|---|---|---|---|
| CTAC20 | Mounting brackets, DIN rail | 20 mm | B98110005 |
| CTAC20/011) | Mounting brackets, DIN rail | 20 mm | B98110006 |
| CTAC35 | Mounting brackets, DIN rail | 35 mm | B98110007 |
| CTAC35/011) | Mounting brackets, DIN rail | 35 mm | B98110008 |
| CTAC60 | Mounting brackets, DIN rail | 60 mm | B98110017 |
| CTAC120 | Mounting brackets | 120 mm | B98110019 |
| CTAC210 | Mounting brackets | 210 mm | B98110020 |
1) For EDS441 and EDS461/491 insulation fault locators
Optional Accessories for LINETRAXX® CTAC series
| Type designation | Art. No. |
|---|---|
| Snap-on mounting for CTAC20 and CTAC20/01 | B91080111 |
| Snap-on mounting for CTAC35 and CTAC35/01 | B91080112 |
(included in scope of delivery)
