LINETRAXX® CTUB100 series

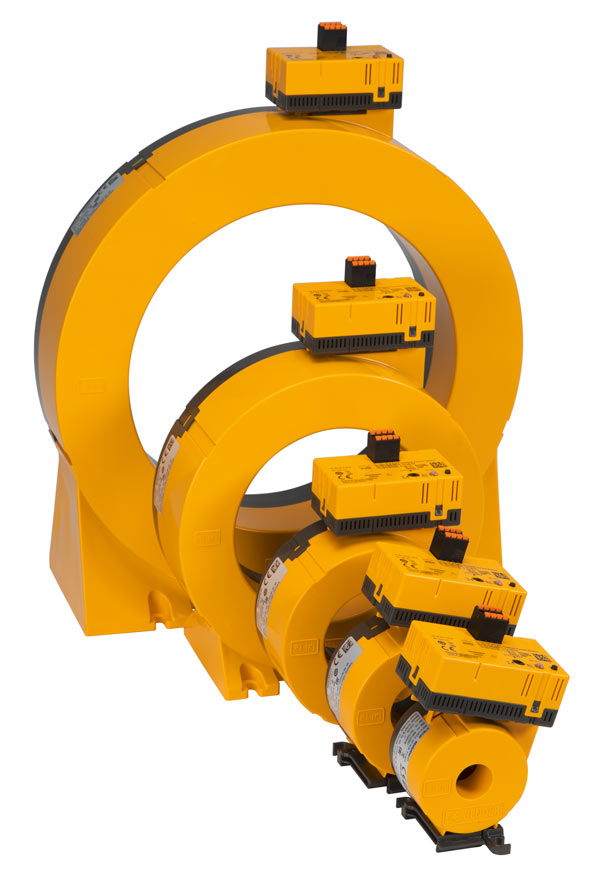

The CTUB100 series measuring current transformers are combinations of CTBC… measuring current transformer cores and CTUB10… electronic modules, which convert AC and DC currents into an evaluable measurement signal. The measurement signals can be evaluated using devices of the RCMA420/423, RCMS410/460/490 or EDS440/EDS441LAB series.
The measuring current transformers are connected to the respective devices via a 2- or 6-core cable. They can be used in DC, AC, and 3(N)AC systems.
The CTUB101-CTBCxx measuring current transformers are intended for connection to devices of the RCMA420/423 series and are supplied directly from the evaluator with the supply voltage DC ±12 V via the 6-core cable.
The CTUB102-CTBCxx measuring current transformers are intended for connection to an RCMS410/460/490. If the CTUB102-CTBCxx measuring current transformers are connected to an RCMS410/460/490 system, a DC 24 V power supply unit is required for the measuring current transformers, which is available as an accessory.
The CTUB104-CTBCxx measuring current transformers are intended for connection to an EDS440 or EDS441LAB. If the CTUB104-CTBCxx measuring current transformers are connected to such an insulation fault locator, a DC 24 V power supply unit is required for the measuring current transformers, which is available as an accessory.
The measuring current transformer cores of the CTBC20P…210P series feature an integrated magnetic shield and are suitable for applications with high load currents or inrush currents.
The CTUB100 series measuring current transformers are combinations of CTBC… measuring current transformer cores and CTUB10… electronic modules, which convert AC and DC currents into an evaluable measurement signal. The measurement signals can be evaluated using devices of the RCMA420/423, RCMS410/460/490 or EDS440/EDS441LAB series.
The measuring current transformers are connected to the respective devices via a 2- or 6-core cable. They can be used in DC, AC, and 3(N)AC systems.
The CTUB101-CTBCxx measuring current transformers are intended for connection to devices of the RCMA420/423 series and are supplied directly from the evaluator with the supply voltage DC ±12 V via the 6-core cable.
The CTUB102-CTBCxx measuring current transformers are intended for connection to an RCMS410/460/490. If the CTUB102-CTBCxx measuring current transformers are connected to an RCMS410/460/490 system, a DC 24 V power supply unit is required for the measuring current transformers, which is available as an accessory.
The CTUB104-CTBCxx measuring current transformers are intended for connection to an EDS440 or EDS441LAB. If the CTUB104-CTBCxx measuring current transformers are connected to such an insulation fault locator, a DC 24 V power supply unit is required for the measuring current transformers, which is available as an accessory.
The measuring current transformer cores of the CTBC20P…210P series feature an integrated magnetic shield and are suitable for applications with high load currents or inrush currents.
Features
- Combined test and reset button
- Multicolour LED for operation, fault and status messages
- Exchangeable electronic module without mechanical separation of the primary conductors
- Extension/retrofitting or modification of functionalities in case of changed monitoring requirements
- Insensitive to load currents due to full magnetic shield (CTUB10x-CTBC20P…210P only)
- Monitoring of the connection to the measuring current transformer
- Supply voltage DC ±12 V/DC 24 V
- CTUB10x-CTBC20…210 for residual current monitoring systems of the RCMS410/460/490 series as well as for RCMA420/423 residual current monitors
- CTUB10x-CTBC20P…210P for residual current monitoring systems of the RCMS410/460/490 series as well as for RCMA420/423 residual current monitors. Can be used for very high system-related peak load currents.
- CTUB104-CTBC20…210(P) for insulation fault locators of the EDS440 and EDS441LAB series
LINETRAXX® CTUB100 series Variant(s)
| Type | Suitable for evaluator | Supply voltage | Current transformer diameter | Shielding | Art. No. |
|---|---|---|---|---|---|
| CTUB101-CTBC20 | RCMA420, RCMA423 | DC ±12 V | ø 20 | - | B78120010 |
| CTUB101-CTBC20P | RCMA420, RCMA423 | DC ±12 V | ø 20 | x | B78120020 |
| CTUB101-CTBC35 | RCMA420, RCMA423 | DC ±12 V | ø 35 | - | B78120012 |
| CTUB101-CTBC35P | RCMA420, RCMA423 | DC ±12 V | ø 35 | x | B78120022 |
| CTUB101-CTBC60 | RCMA420, RCMA423 | DC ±12 V | ø 60 | - | B78120014 |
| CTUB101-CTBC60P | RCMA420, RCMA423 | DC ±12 V | ø 60 | x | B78120024 |
| CTUB101-CTBC120 | RCMA420, RCMA423 | DC ±12 V | ø 120 | - | B78120016 |
| CTUB101-CTBC120P | RCMA420, RCMA423 | DC ±12 V | ø 120 | x | B78120026 |
| CTUB101-CTBC210 | RCMA420, RCMA423 | DC ±12 V | ø 210 | - | B78120018 |
| CTUB101-CTBC210P | RCMA420, RCMA423 | DC ±12 V | ø 210 | x | B78120028 |
| CTUB102-CTBC20 | RCMS410, RCMS460, RCMS490 | DC 24 V | ø 20 | - | B78120011 |
| CTUB102-CTBC20P | RCMS410, RCMS460, RCMS490 | DC 24 V | ø 20 | x | B78120021 |
| CTUB102-CTBC35 | RCMS410, RCMS460, RCMS490 | DC 24 V | ø 35 | - | B78120013 |
| CTUB102-CTBC35P | RCMS410, RCMS460, RCMS490 | DC 24 V | ø 35 | x | B78120023 |
| CTUB102-CTBC60 | RCMS410, RCMS460, RCMS490 | DC 24 V | ø 60 | - | B78120015 |
| CTUB102-CTBC60P | RCMS410, RCMS460, RCMS490 | DC 24 V | ø 60 | x | B78120025 |
| CTUB102-CTBC120 | RCMS410, RCMS460, RCMS490 | DC 24 V | ø 120 | - | B78120017 |
| CTUB102-CTBC120P | RCMS410, RCMS460, RCMS490 | DC 24 V | ø 120 | x | B78120027 |
| CTUB102-CTBC210 | RCMS410, RCMS460, RCMS490 | DC 24 V | ø 210 | - | B78120019 |
| CTUB102-CTBC210P | RCMS410, RCMS460, RCMS490 | DC 24 V | ø 210 | x | B78120029 |
| CTUB104-CTBC20P | EDS440, EDS441LAB | DC 24 V | ø 20 | x | B78120033 |
| CTUB104-CTBC35P | EDS440, EDS441LAB | DC 24 V | ø 35 | x | B78120034 |
| CTUB104-CTBC60P | EDS440, EDS441LAB | DC 24 V | ø 60 | x | B78120035 |
Optional Accessories for LINETRAXX® CTUB100 series
Spare parts electronic modules
| Type | Supply voltage Us | Suitable for evaluator | Art. No. |
|---|---|---|---|
| CTUB101 | DC ±12 V | RCMA420/423 | B78120050 |
| CTUB102 | DC 24 V | RCMS410/460/490 | B78120051 |
| CTUB104 | DC 24 V | EDS440/441LAB | B78120053 |
Required terminals are included in the scope of delivery.
Connecting cables are optionally available.
Spare parts measuring current transformer cores
| Type | Internal diameter | Art. No. |
|---|---|---|
| CTBC20 | 20 mm | B98120001 |
| CTBC20P | 20 mm | B98120002 |
| CTBC35 | 35 mm | B98120003 |
| CTBC35P | 35 mm | B98120004 |
| CTBC60 | 60 mm | B98120005 |
| CTBC60P | 60 mm | B98120006 |
| CTBC120 | 120 mm | B98120007 |
| CTBC120P | 120 mm | B98120020 |
| CTBC210 | 210 mm | B98120008 |
| CTBC210P | 210 mm | B98120021 |
P = full magnetic shield
Connecting cables
| Length (m) | Connection to | Name | Art. No. |
|---|---|---|---|
| 1 | RCMA42… | CTX-100 | B98110080 |
| 2,5 | RCMA42… | CTX-250 | B98110081 |
| 5 | RCMA42… | CTX-500 | B98110082 |
| 10 | RCMA42… | CTX-1000 | B98110083 |
| 1 | RCMS410, RCMS46…, RCMS49…, EDS44… | CTXS-100 | B98110090 |
| 2,5 | RCMS410, RCMS46…, RCMS49…, EDS44… | CTXS-250 | B98110091 |
| 5 | RCMS410, RCMS46…, RCMS49…, EDS44… | CTXS-500 | B98110092 |
| 10 | RCMS410, RCMS46…, RCMS49…, EDS44… | CTXS-1000 | B98110093 |
Voltage supply
| Type | max. connected current transformers | Art. No. |
|---|---|---|
| STEP-PS/1 AC/24 DC/0.5 | 4 | B94053110 |
| STEP-PS/1 AC/24 DC/1.75 | 14 | B94053111 |
| STEP-PS/1 AC/24 DC/4.2 | 34 | B94053112 |
Accessories
| Type designation | Art. No. |
|---|---|
| Snap-on mounting for CTBC20 and CTBC20P | B91080111 |
| Snap-on mounting for CTBC35 and CTBC35P | B91080112 |
(included in scope of delivery)
