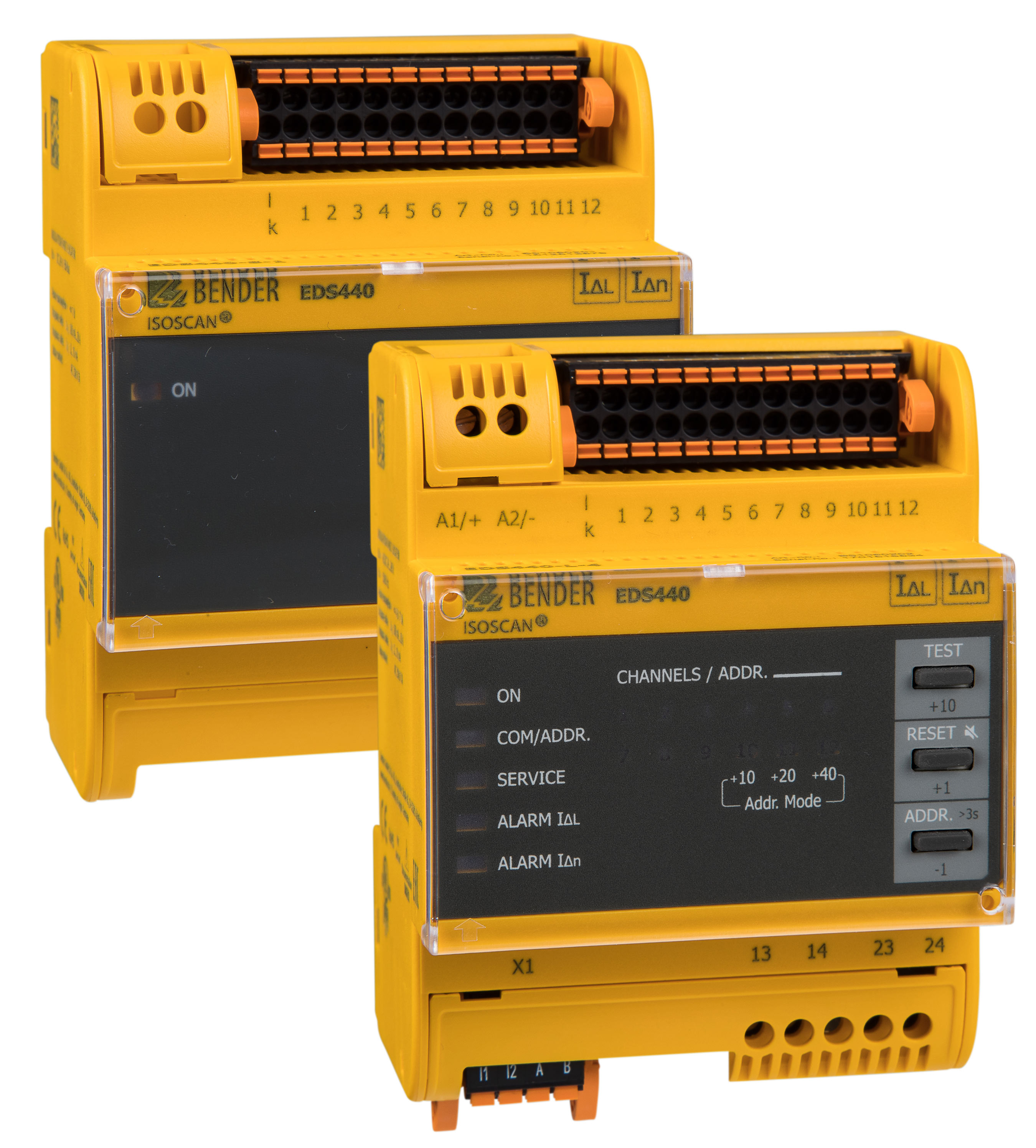

ISOSCAN® EDS440
- Automatic insulation fault location
- Application main circuits
- 12 measuring channels for measuring current transformers
- CT connection monitoring
- Universal system concept
The insulation fault locators ISOSCAN® EDS440 are used in connection with the ISOMETER® iso685-D-P or the locating current injector PGH to locate insulation faults in unearthed power supply systems (IT systems).
They detect locating current signals generated by the insulation monitoring device iso685-D-P or the locating current injector PGH and evaluate them correspondingly. Up to 12 measuring current transformers can be connected to an EDS440. In total, up to 50 insulation fault locators can be connected via an RS-485 interface (BS bus protocol) and thereby up to 600 outgoing circuits can be monitored.
- Automatic insulation fault location
- Application main circuits
- 12 measuring channels for measuring current transformers
- CT connection monitoring
- Universal system concept
The insulation fault locators ISOSCAN® EDS440 are used in connection with the ISOMETER® iso685-D-P or the locating current injector PGH to locate insulation faults in unearthed power supply systems (IT systems).
They detect locating current signals generated by the insulation monitoring device iso685-D-P or the locating current injector PGH and evaluate them correspondingly. Up to 12 measuring current transformers can be connected to an EDS440. In total, up to 50 insulation fault locators can be connected via an RS-485 interface (BS bus protocol) and thereby up to 600 outgoing circuits can be monitored.
Features
- Universal system concept
- Modular design, therefore easily adjustable to the given circumstances
- Measuring current transformers available in various sizes and versions
- CT connection monitoring
- 12 measuring channels for measuring current transformer series CTAC…, WR…, WS…
- Optional extension by 12 relay channels
- Fault memory behaviour selectable
- Up to 50 EDS insulation fault locators in the system, 600 measuring channels
- Response sensitivity: 2…10 mA
- AC residual current measurement with configurable response value
- Two alarm relays with one N/O contact each
- N/O or N/C operation selectable
- External test/reset
- Central display of faulty outgoing circuits
- Serial interface RS-485, BS bus address range 2…79, Modbus RTU
- Connection to higher-level control and visualisation systems possible
Applications
- Insulation fault location in AC, 3AC and DC IT systems
- Main circuits and control circuits in industrial plants and ships
- Diode-decoupled DC IT systems in power plants
- Systems for medical locations
ISOSCAN® EDS440 Variant(s)
| Type | Supply voltage US* | Response value | LED display | Option "W" | Art. no. |
|---|---|---|---|---|---|
| EDS440-S-1 | DC 24 | 2…10 mA | -- | -- | B91080201 |
| EDS440W-S-1 | DC 24 V | 2…10 mA | -- | ✓ | B91080201W |
| EDS440-L-4 | AC/DC 24…240 V | 2…10 mA | ✓ | -- | B91080202 |
| EDS440W-L-4 | AC/DC 24…240 V | 2…10 mA | ✓ | ✓ | B91080202W |
| EDS440-LAF-4 | AC/DC 24…240 V | 10 mA | ✓ | -- | B91080209 |
*Absolute values
Optional Accessories for ISOSCAN® EDS440
Accessories
| Type | Supply voltage US | Art. no. |
|---|---|---|
| DI-1PSM (RS-485 repeater) | AC/DC 24 V ± 20 % | B95012044 |
| DI-2USB (interface converter RS-485/USB) with USB cable | Supplied by USB interface | B95012045 |
| IOM441-S (input/output module) | 12-fold relay module | B95012057 |
Measuring current transformer for EDS440
| Type | Internal diameter/mm | Design type | Art. no. |
|---|---|---|---|
| CTAC20 | ø 20 | circular | B98110005 |
| CTAC35 | ø 35 | circular | B98110007 |
| CTAC60 | ø 60 | circular | B98110017 |
| CTAC120 | ø 120 | circular | B98110019 |
| CTAC210 | ø 210 | circular | B98110020 |
Alternative measuring current transformer from the Bender program
| Type | Internal diameter/mm | Design type | Art. no. |
|---|---|---|---|
| CTAS50 | 50 | split-core | B98110009 |
| CTAS80 | 80 | split-core | B98110010 |
| CTAS120 | 120 | split-core | B98110011 |
| W10/600 | 10 | circular | B911761 |
| W0-S20 | 20 | circular | B911787 |
| W1-S35 | 35 | circular | B911731 |
| W2-S70 | 70 | circular | B911732 |
| W3-S105 | 105 | circular | B911733 |
| W4-S140 | 140 | circular | B911734 |
| W5-S210 | 210 | circular | B911735 |
| WR70x175S | 70x175 | rectangular | B911738 |
| WR115x305S | 115x305 | rectangular | B911739 |
| WR150x350S | 150x350 | rectangular | B911740 |
| WR200x500S | 200x500 | rectangular | B911763 |
| WS50x80S | 50x80 | split-core | B911741 |
| WS80x80S | 80x80 | split-core | B911742 |
| WS80x120S | 80x120 | split-core | B911743 |
| WS80x160S | 80x160 | split-core | B911755 |
Measuring current transformer for EDS440-LAF
| Type | mm | Design type | Art. no. |
|---|---|---|---|
| CTAF500SET | 500 | flexible | B98110022 |
| CTAF1000SET | 1000 | flexible | B98110023 |
