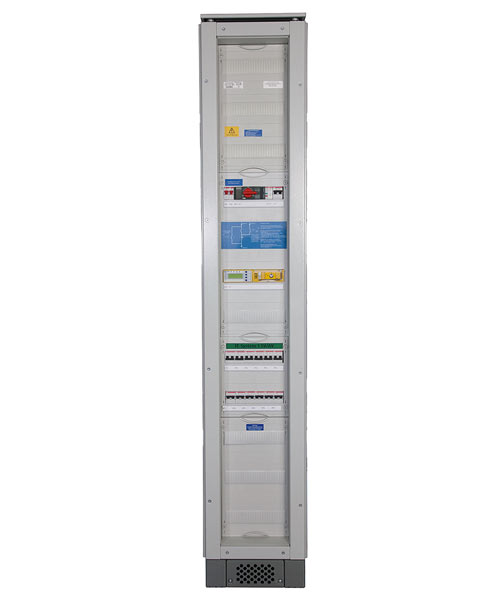

Bespoke Medical IT System
- Flexible design configuration
- Tailored for specific project requirements
A bespoke medical IT system is an all-in-one solution, designed for unique, specific project requirements.
There are two system options including the incorporation of ATICS® automatic changeover device and EDS151 fault location technology or the standard option of an isoMED427 insulation monitoring device and EDS151.
Bender advises the adoption of ATICS® for increased resilience and to eliminate a single point of failure. ATICS® can be incorporated into a medical IT system, in the event of primary power supply loss, ATICS® switches over automatically in 0.5 seconds to the secondary supply, maintaining power to the critical medical sockets.
A bespoke medical IT system can be designed to fit the installation requirements incorporating additional technology as required, this includes, primary side RCBO distribution, power quality energy meters, residual current monitoring and gateway, communication devices.
A bespoke medical IT system would be a suitable solution when there is limited space for TN distribution boards. All technology is installed within one panel which can accommodate all transformer sizes tailored to project requirements.
This product can be supplied as floor standing or wall mount.
Medical IT systems are optimised for energy efficiency utilising green line energy efficient transformers, and are supplied with a standard 12-month warranty, that can be extended to a 5-year warranty on Bender parts when added to a Bender service agreement upon installation.
- Flexible design configuration
- Tailored for specific project requirements
A bespoke medical IT system is an all-in-one solution, designed for unique, specific project requirements.
There are two system options including the incorporation of ATICS® automatic changeover device and EDS151 fault location technology or the standard option of an isoMED427 insulation monitoring device and EDS151.
Bender advises the adoption of ATICS® for increased resilience and to eliminate a single point of failure. ATICS® can be incorporated into a medical IT system, in the event of primary power supply loss, ATICS® switches over automatically in 0.5 seconds to the secondary supply, maintaining power to the critical medical sockets.
A bespoke medical IT system can be designed to fit the installation requirements incorporating additional technology as required, this includes, primary side RCBO distribution, power quality energy meters, residual current monitoring and gateway, communication devices.
A bespoke medical IT system would be a suitable solution when there is limited space for TN distribution boards. All technology is installed within one panel which can accommodate all transformer sizes tailored to project requirements.
This product can be supplied as floor standing or wall mount.
Medical IT systems are optimised for energy efficiency utilising green line energy efficient transformers, and are supplied with a standard 12-month warranty, that can be extended to a 5-year warranty on Bender parts when added to a Bender service agreement upon installation.
Features
- Accommodates 3.15, 4, 5, 6, 8 & 10 kVA transformer sizes
- Single and double system configurations
- Floor standing and wall-mount options
- Incorporate additional technology, including:
1. Primary Side RCBO distribution
2. A unique number of outgoing ways
3. Power Quality/Energy Meters
4. Residual Current Monitoring
5. Gateway device
Applications
- Operating Theatres (including, Anaesthetic Rooms, Recovery Areas, Endoscopy)
- Imaging Suites (Interventional MRI/PET/CT/X-RAY/Fluoroscopy/Gamma, Radiological Diagnostic Room, Cardiac Cather Lab)
- Critical Care Areas (CICU, ITU/ICU, HDU, PICU, NICU, SCBU, CCU)
- Emergency Department (A&E Resuscitation)
Bespoke Medical IT System Variant(s)
| Type | Dimensions in mm |
|---|---|
| Single Width Medical IT floor standing | 1913h x 374w x 425d (3.15/4/5/6.3/8kVA TRX) |
| Single Width Medical IT floor standing | 1913h x 374w x 625d (10kVA TRX only) |
| Single Width Medical IT floor standing | 2213h x 374w x 425d (3.15/4/5/6.3/8kVA TRX) |
| Single Width Medical IT floor standing | 2213h x 374w x 625d (10kVA TRX only) |
| Double Width Medical IT floor standing | 1913h x 624w x 425d (3.15/4/5/6.3/8kVA TRX) |
| Double Width Medical IT floor standing | 1913h x 624w x 625d (10kVA TRX only) |
| Double Width Medical IT floor standing | 2213h x 624w x 425d (3.15/4/5/6.3/8kVA TRX) |
| Double Width Medical IT floor standing | 2213h x 624w x 625d (10kVA TRX only) |
The panel height and width selection is based on the devices required in the panel and the configuration. The panel depth is based on the transformer selection.
