Modular Medical IT System
- Compact, space-saving solution
- Cost-effective and readily available
- Providing safer, resilient power
Modular medical IT systems are designed to provide hospitals with a cost-effective, space-saving solution.
Modular medical IT systems are built in 6, 12 & 18-way monitoring & distribution cabinets. There are two system options, including the incorporation of ATICS® automatic changeover devices and EDS151 fault location technology or the standard option of an isoMED427 insulation monitoring device and EDS151.
Bender advises the adoption of ATICS® for increased resilience and to eliminate a single point of failure. ATICS® can be incorporated into a medical IT system without taking up additional space, and in the event of primary power supply loss, ATICS® switches over automatically in 0.5 seconds to the secondary supply, maintaining power to the critical medical sockets.

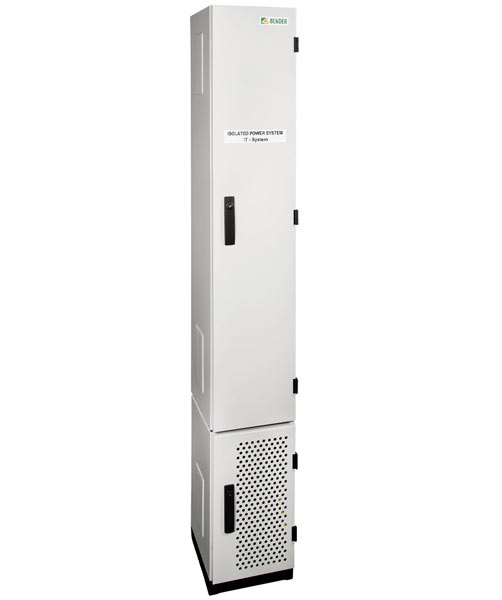

The modular medical IT system is a two-part solution to optimise a small footprint, comprising a standard panel size with the installed technology and a transformer housing which can accommodate all transformer sizes depending on project requirements.
This off-the-shelf, readily available solution can be supplied as a floor-standing or wall-mount solution. Modular medical IT systems are supplied with a standard 12-month warranty, that can be extended to a 5-year warranty on Bender parts when added to a Bender service agreement upon installation.
- Compact, space-saving solution
- Cost-effective and readily available
- Providing safer, resilient power
Modular medical IT systems are designed to provide hospitals with a cost-effective, space-saving solution.
Modular medical IT systems are built in 6, 12 & 18-way monitoring & distribution cabinets. There are two system options, including the incorporation of ATICS® automatic changeover devices and EDS151 fault location technology or the standard option of an isoMED427 insulation monitoring device and EDS151.
Bender advises the adoption of ATICS® for increased resilience and to eliminate a single point of failure. ATICS® can be incorporated into a medical IT system without taking up additional space, and in the event of primary power supply loss, ATICS® switches over automatically in 0.5 seconds to the secondary supply, maintaining power to the critical medical sockets.
The modular medical IT system is a two-part solution to optimise a small footprint, comprising a standard panel size with the installed technology and a transformer housing which can accommodate all transformer sizes depending on project requirements.
This off-the-shelf, readily available solution can be supplied as a floor-standing or wall-mount solution. Modular medical IT systems are supplied with a standard 12-month warranty, that can be extended to a 5-year warranty on Bender parts when added to a Bender service agreement upon installation.
Features
- Accommodates 3.15,4,5,6,8&10kVA transformer sizes
- Single and double system configurations
- Floor-standing and wall-mount options
- Two-part solution incorporating a standard panel with installed technology and a separate transformer unit
Applications
- Operating Theatres (including, Anaesthetic Rooms, Recovery Areas, and Endoscopy)
- Imaging Suites (Interventional MRI/PET/CT/X-RAY/Fluoroscopy/Gamma, Radiological Diagnostic Room, Cardiac Cather Lab)
- Critical Care Areas (CICU, ITU/ICU, HDU, PICU, NICU, SCBU, CCU)
- Emergency Department (A&E Resuscitation)
Modular Medical IT System Variant(s)
Transformers
| Type | Rated power | Dimensions in mm |
|---|---|---|
| Floor standing transformer | 3.15kVA | 550h x 300w x 350d |
| Floor standing transformer | 4kVA | 550h x 300w x 350d |
| Floor standing transformer | 5kVA | 550h x 300w x 350d |
| Floor standing transformer | 6.3kVA | 550h x 300w x 350d |
| Floor standing transformer | 8kVA | 550h x 300w x 350d |
| Floor standing transformer | 10kVA | 550h x 300w x 350d |
Medical IT Section
| Type | Dimensions in mm |
|---|---|
| Single Medical IT floor or wall mounted with 6 outgoing MCBs/EDS | 950h x 300w x 350d |
| Single Medical IT floor or wall mounted with 12 outgoing MCBs/EDS | 950h x 300w x 350d |
| Single Medical IT floor or wall mounted with 12 outgoing MCBs | 950h x 300w x 350d |
| Single Medical IT floor or wall mounted with 6 outgoing MCBs/EDS/ATICS | 1400h x 300w x 350d |
| Single Medical IT floor or wall mounted with 12 outgoing MCBs/EDS/ATICS | 1400h x 300w x 350d |
| Single Medical IT floor or wall mounted with 6 outgoing MCBs/ATICS | 1400h x 300w x 350d |
| Single Medical IT floor or wall mounted with 12 outgoing MCBs/ATICS | 1400h x 300w x 350d |
| Single Medical IT floor or wall mounted with 6 outgoing MCBs | 950h x 300w x 350d |
| Single Medical IT floor or wall mounted with 6 outgoing MCBs/EDS/PQM | 950h x 300w x 350d |
| Single Medical IT floor or wall mounted with 12 outgoing MCBs/EDS/PQM | 950h x 300w x 350d |
| Single Medical IT floor or wall mounted with 6 outgoing MCBs/ATICS/PQM | 1400h x 300w x 350d |
| Single Medical IT floor or wall mounted with 6 outgoing MCBs/EDS/ATICS/PQM | 1400h x 300w x 350d |
| Single Medical IT floor or wall mounted with 12 outgoing MCBs/EDS/ATICS/PQM | 1400h x 300w x 350d |
| Single Medical IT floor or wall mounted with 12 outgoing MCBs/ATICS/PQM | 1400h x 300w x 350d |
| Single Medical IT floor or wall mounted with 18 outgoing MCBs/ATICS/EDS | 1900h x 300w x 350d |
| Single Medical IT floor or wall mounted with 18 outgoing MCBs/EDS | 1900h x 300w x 350d |
| Mortuary Single Medical IT floor or wall mounted with 6 outgoing MCBs | 950h x 300w x 350d |
