Grand Promerix™ Operating Table
- Heavy-duty, electro-hydraulic operating table
- Highly configurable for individual procedures
- Increased efficiency for general and specialised surgery
- Enhanced adjustability for posture positioning
- Ergonomic and user-friendly
- Maximum stability with steady floor locking
Grand Promerix™ mobile operating table is suitable for all types of surgery. With its modular table top design and comprehensive range of accessories, Grand Promerix can be configured for any surgical procedure and is suitable for all patient sizes.
The Grand Promerix™ table provides clinical teams with open access to the patient operating area. Simple to manoeuvre and position via hand and foot controls, Grand Promerix has excellent working ergonomics and a stable floor lock ensuring patient safety is not compromised.

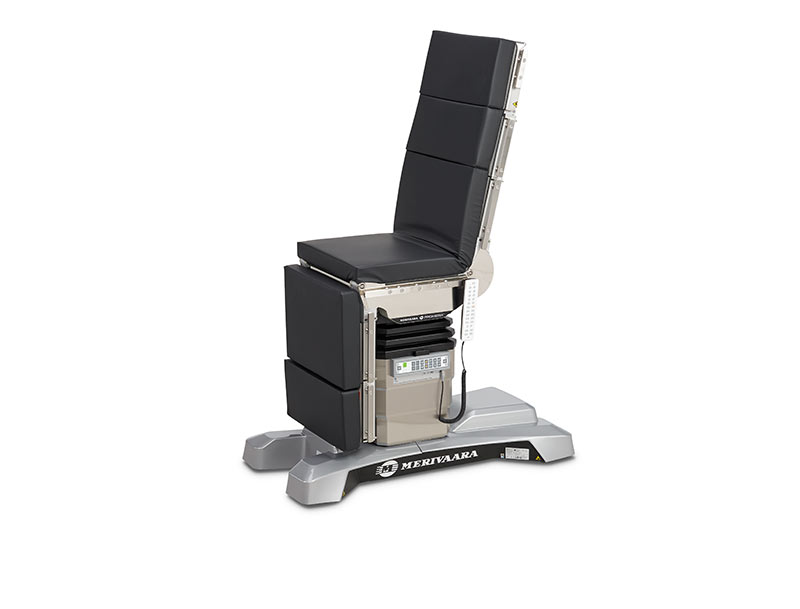

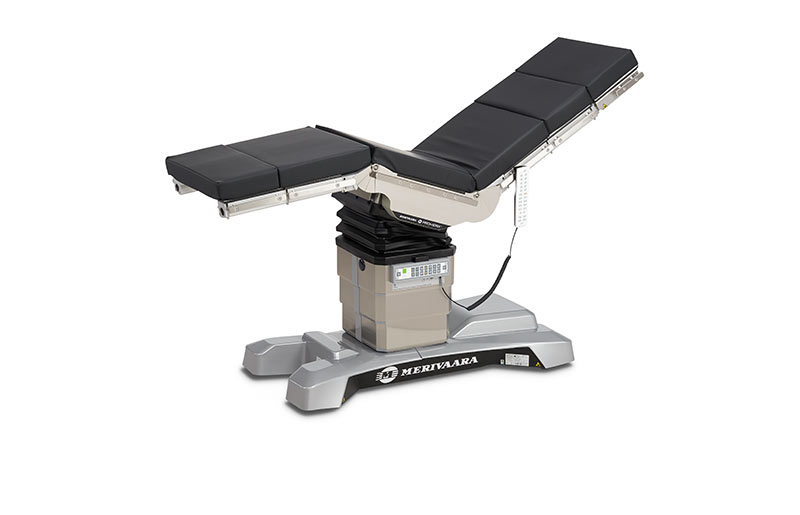

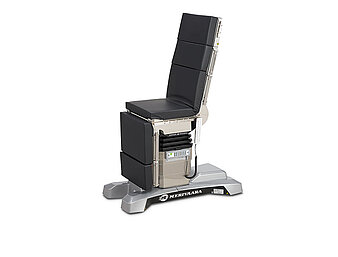

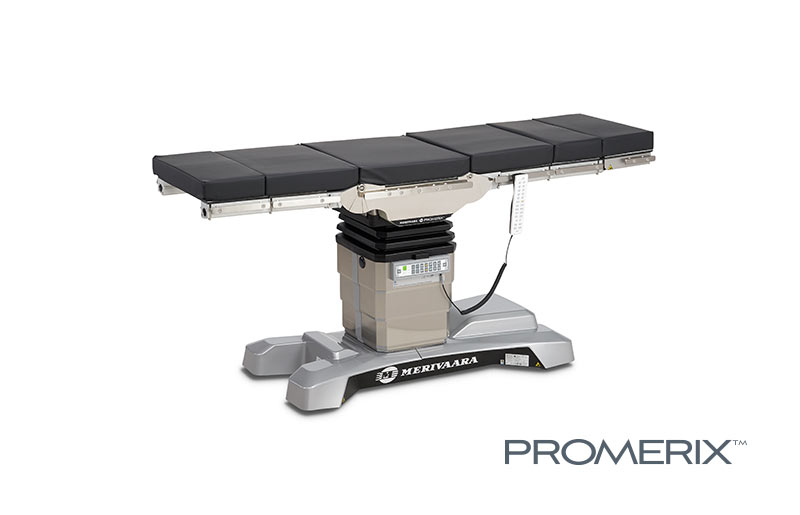

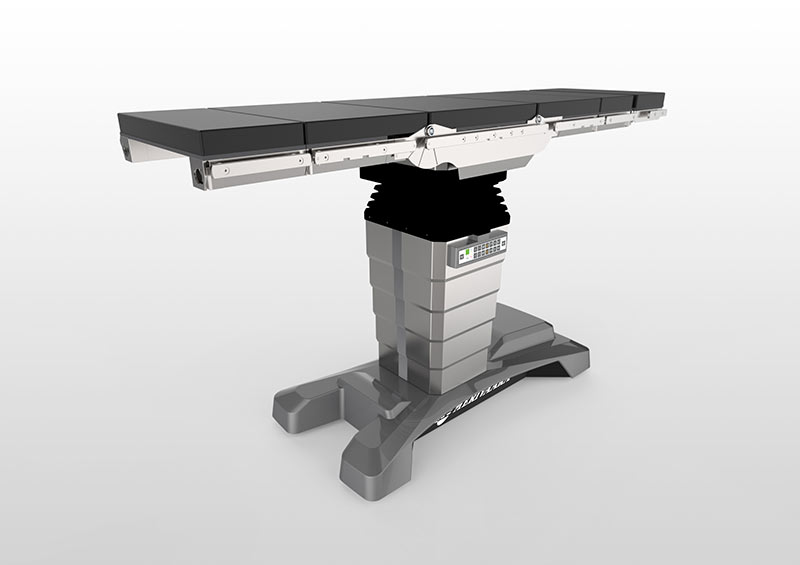

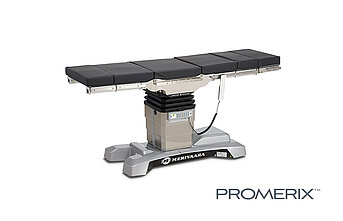

![[Translate to English:] Grand Promerix™ Operating Table](/fileadmin/_processed_/f/3/csm_promerix_operating_table-3_92dc1b8fa4.jpg "[Translate to English:] Grand Promerix™ Operating Table")
![[Translate to English:] Grand Promerix™ Operating Table](/fileadmin/_processed_/c/a/csm_promerix_operating_table-4_d98400e9ad.jpg "[Translate to English:] Grand Promerix™ Operating Table")
![[Translate to English:] Grand Promerix™ Operating Table](/fileadmin/_processed_/5/6/csm_promerix_operating_table-5_84dd2024fd.jpg "[Translate to English:] Grand Promerix™ Operating Table")
![[Translate to English:] Grand Promerix™ Operating Table](/fileadmin/_processed_/f/3/csm_promerix_operating_table-3_3972e7734f.jpg "[Translate to English:] Grand Promerix™ Operating Table")
![[Translate to English:] Grand Promerix™ Operating Table](/fileadmin/_processed_/c/a/csm_promerix_operating_table-4_ffb327e4ec.jpg "[Translate to English:] Grand Promerix™ Operating Table")
![[Translate to English:] Grand Promerix™ Operating Table](/fileadmin/_processed_/5/6/csm_promerix_operating_table-5_a942964add.jpg "[Translate to English:] Grand Promerix™ Operating Table")
- Heavy-duty, electro-hydraulic operating table
- Highly configurable for individual procedures
- Increased efficiency for general and specialised surgery
- Enhanced adjustability for posture positioning
- Ergonomic and user-friendly
- Maximum stability with steady floor locking
Grand Promerix™ mobile operating table is suitable for all types of surgery. With its modular table top design and comprehensive range of accessories, Grand Promerix can be configured for any surgical procedure and is suitable for all patient sizes.
The Grand Promerix™ table provides clinical teams with open access to the patient operating area. Simple to manoeuvre and position via hand and foot controls, Grand Promerix has excellent working ergonomics and a stable floor lock ensuring patient safety is not compromised.
Features
- Modular design
- Broad range of leg, head and body sections available
- Various positions for all surgery
- Battery (up to one week) and mains power supply
- Great mobility with strong, antistatic double castors
- Electro-hydraulic adjustments are controlled through multiple channels
- Memory foam mattress for maximum comfort
- Maximum safe working load 275 kg (sliding), 325 kg (non-sliding)
- Maximum lifting capacity 490 kg
- Override panel located in the column for emergency use
- Fulfils X-ray and C-arm requirements
- Hydraulic stable floor lock system
- Optional Merimote™ touch-screen remote control with up to 200 memory positions
Applications
- General surgery
- ENT surgery
- Ophthalmology
- Lithotomy
- Laparoscopic surgery
- Urology
- Laparoscopic, MIS surgery
- Neurosurgery
- Spine surgery
- Bariatric surgery
Grand Promerix™ Operating Table Variant(s)
| Specification Information | Non-sliding | Slide |
|---|---|---|
| Length | 2100 mm | 2100 mm |
| Width (table top) | 540 mm | 540 mm |
| Height adjustment | 610…1070 mm | 650…1110 mm |
| Safe working load (SWL) | 325 kg | 275 kg |
| Trendelenburg | -35 ° | -35 ° |
| Reverse Trendelenburg | +35 ° | +35 ° |
| Head rest adjustment | -45 to +45 ° | -45 to +45 ° |
| Back section adjustment | -45 to +80 ° | -45 to +80 ° |
| Leg section adjustment | -95 to +70 ° | -105 to +70 ° |
| Castors size | 80 mm | 80 mm |
| Frequency | 47…63 Hz | 47…63 Hz |
| Weight | 300 kg | 325 kg |
| Longitudinal shift of the table top | - | 410 mm |
| Lateral tilt | 20 to 20 ° | -25 to +25 ° |
| Floor clearance | 25 mm | 25 mm |
| Max. lifting capacity | 490 kg | 490 kg |
Optional Accessories for Grand Promerix™ Operating Table
Various optional accessories are available
