COMTRAXX® CP9 24” Glass Theatre Control Panel
- Seamless integration of connection theatre systems
- High resolution, glass-touch technology
- Delivers audio and visual information and alarms
- IP54 rated, easy to clean and disinfect
- Simple and intuitive to operate
- Eco and Advanced models
This innovative theatre control panel offers a sleek and sophisticated method of controlling the entire operating theatre from a central location.

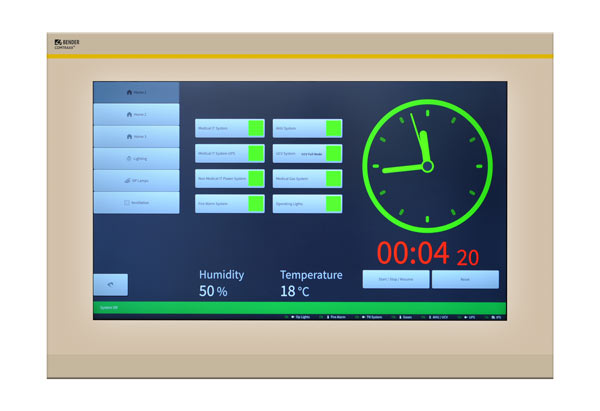

The anti-reflective glass touch panel incorporates self-explanatory images, clocks, readings and control functions, in a seamless, screw-free fascia.
The design incorporates human machine interface (HMI) and programmable logic controller for integration of connected systems such as lighting, temperature and humidity, ventilation and other critical alarms controls.
This standardised theatre control panel is designed for UK and Ireland hospitals. It is available in grey and white, with three visualisation options. IP54 rated it is easy to clean and disinfect with a screwless mount front plate. Assembled in the UK.

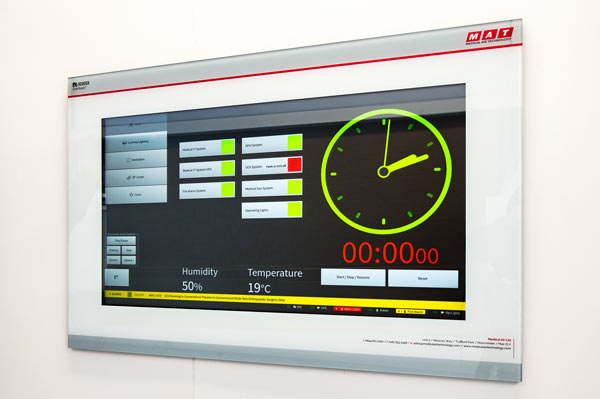

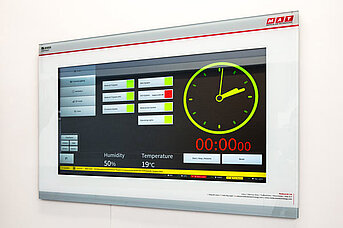

![[Translate to English:] COMTRAXX CP9](/fileadmin/_processed_/a/a/csm_BUK_CP9-24_08_WEB_7a22dd5459.jpg "[Translate to English:] COMTRAXX CP9")

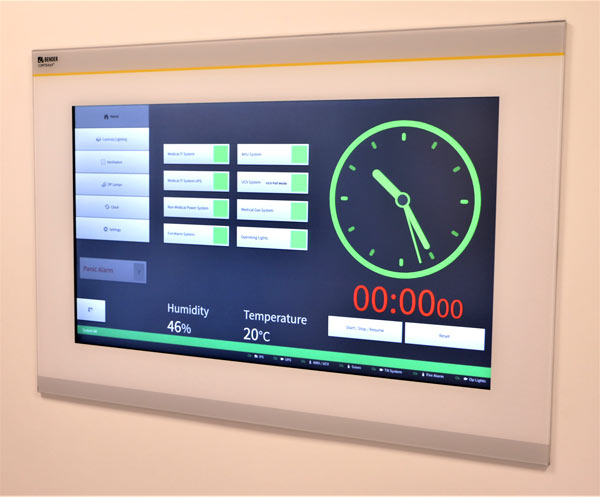

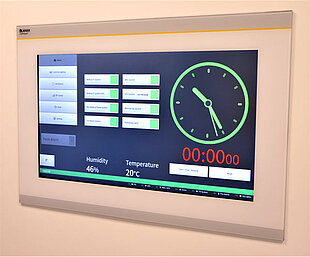

![[Translate to English:] COMTRAXX CP9](/fileadmin/_processed_/1/0/csm_BUK_CP9-24_09_WEB_1bac3553e0.jpg "[Translate to English:] COMTRAXX CP9")

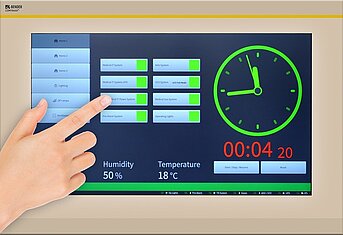

![[Translate to English:] COMTRAXX CP9](/fileadmin/_processed_/7/7/csm_cp9_touch_65770e63db.jpg "[Translate to English:] COMTRAXX CP9")

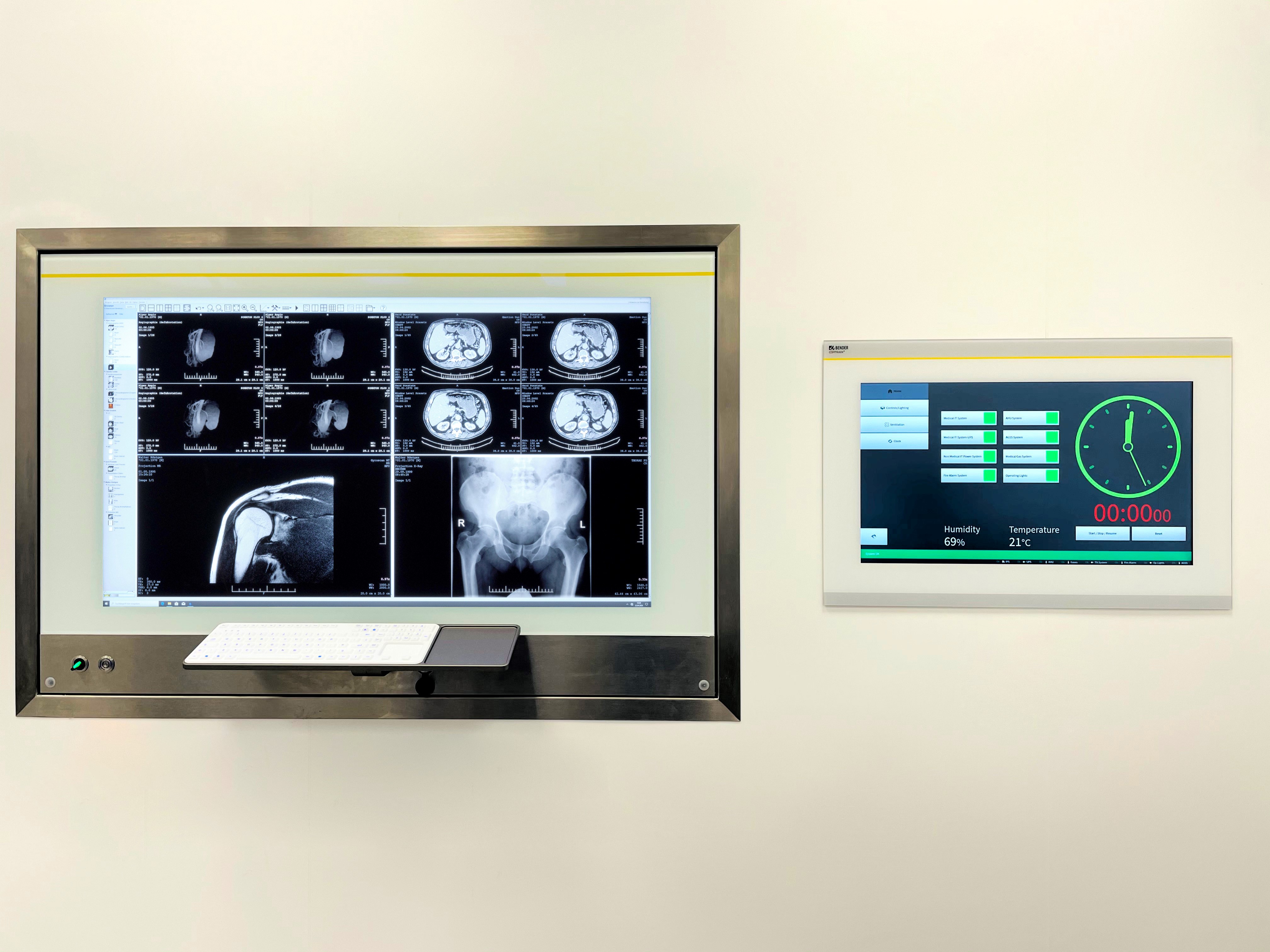

![[Translate to English:] COMTRAXX CP9](/fileadmin/_processed_/5/7/csm_cp9_and_mdi_panel_c596ff8164.jpg "[Translate to English:] COMTRAXX CP9")

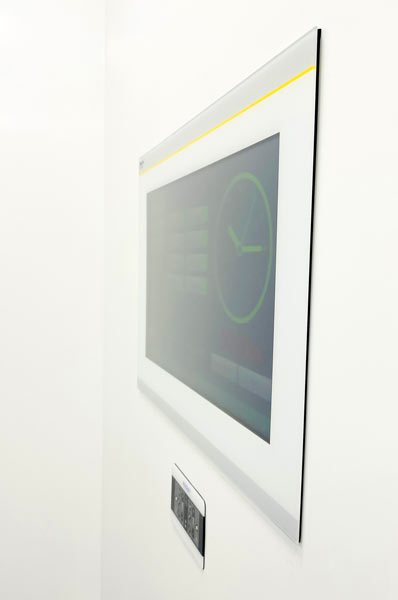

![[Translate to English:] COMTRAXX CP9](/fileadmin/_processed_/a/5/csm_cp9-side-view_6f01fc687d.jpg "[Translate to English:] COMTRAXX CP9")
![[Translate to English:] COMTRAXX CP9](/fileadmin/_processed_/a/a/csm_BUK_CP9-24_08_WEB_6148cc2baf.jpg "[Translate to English:] COMTRAXX CP9")
![[Translate to English:] COMTRAXX CP9](/fileadmin/_processed_/1/0/csm_BUK_CP9-24_09_WEB_f9d0b5a6b9.jpg "[Translate to English:] COMTRAXX CP9")
![[Translate to English:] COMTRAXX CP9](/fileadmin/_processed_/7/7/csm_cp9_touch_e26a83cb72.jpg "[Translate to English:] COMTRAXX CP9")
![[Translate to English:] COMTRAXX CP9](/fileadmin/_processed_/5/7/csm_cp9_and_mdi_panel_260c1a55b2.jpg "[Translate to English:] COMTRAXX CP9")
![[Translate to English:] COMTRAXX CP9](/fileadmin/_processed_/a/5/csm_cp9-side-view_3e03a163fb.jpg "[Translate to English:] COMTRAXX CP9")
- Seamless integration of connection theatre systems
- High resolution, glass-touch technology
- Delivers audio and visual information and alarms
- IP54 rated, easy to clean and disinfect
- Simple and intuitive to operate
- Eco and Advanced models
This innovative theatre control panel offers a sleek and sophisticated method of controlling the entire operating theatre from a central location.
The anti-reflective glass touch panel incorporates self-explanatory images, clocks, readings and control functions, in a seamless, screw-free fascia.
The design incorporates human machine interface (HMI) and programmable logic controller for integration of connected systems such as lighting, temperature and humidity, ventilation and other critical alarms controls.
This standardised theatre control panel is designed for UK and Ireland hospitals. It is available in grey and white, with three visualisation options. IP54 rated it is easy to clean and disinfect with a screwless mount front plate. Assembled in the UK.
Features
- 24” display size
- Touch-sensitive
- Anti-reflective, tempered glass
- Easy to clean - IP54 degree of protection
- Screwless mounted front-end plate
- Visual and audible alarms
- Clear menu structure
- Excellent contrast, high resolution and wide viewing angle
- Possibility of graphical integration of building plans or status display in photo display
- Simple conversion and expansion with minimal service interruptions
- 3 visualisation options
- Available in white or grey
Applications
- Operating theatres
- Critical care areas
Monitoring, operating and display of:
- Medical IT, UPS & Battery Back Up Power Systems
- Medical Gas & AGSS Alarm Status
- Ventilation, Ultra Clean Ventilation & Building Management Systems
- Fire Alarm Systems
- OR General & Surgical Lighting
- In Use Sign
COMTRAXX® CP9 24” Glass Theatre Control Panel Variant(s)
| Type | Display size | Supply | Dimensions | Weight | Display unit |
|---|---|---|---|---|---|
| CP9 24 ECO | 24” | AC 100…240V, < 55 W | 654 x 441 x 100 mm | 9.1 kg | Glass tempered white or grey |
| CP9 24 ADV | 24” | AC 100…240V, < 55 W | 654 x 441 x 100 mm | 9.1 kg | Glass tempered white or grey |
| Type | Width (mm) | Length (mm) | Display size (mm) |
|---|---|---|---|
| CP9 24 | 654 | 441 | 545 (24”) |
| With bezel | 700 | 488 | X |
Optional Accessories for COMTRAXX® CP9 24” Glass Theatre Control Panel
| Included accessories: | |
|---|---|
| CP9 suction lifter (used to remove the front display) | |
| CP9 replacement plug connector kit |
Downloads for COMTRAXX® CP9 24” Glass Theatre Control Panel
| Name | Category | Size | Language | Timestamp | D-/B-Number |
|---|---|---|---|---|---|
| COMTRAXX CP9 24 Theatre Control Panel | BIM files | 917.4 KB | EN | 2024/12/1212.12.2024 | |
| COMTRAXX®CP9 24" Control Panels | Datasheets | 312.8 KB | EN | 2021/12/2222.12.2021 | |
| COMTRAXX® CP924 | Product Brochures | 2.3 MB | EN | 2023/09/2828.09.2023 |
