RS4 Tier 3
- Tier 3 RS4 is the enhanced rail signalling protection system
- Network Rail Certificate of Acceptance PA05/04750
- For compliance with NR/L2/SIGELP/27725 Tier 3
- Improved fault location from 20KΩ to 100KΩ
- Cost effective and easy to upgrade to legacy equipment
- Housed in Class II GRP enclosure for lighter and compact design

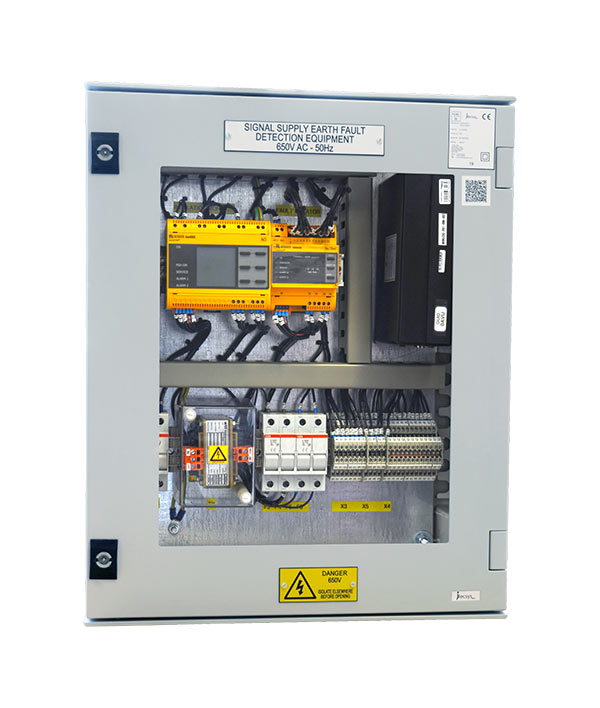

RS4 Tier 3 is an integrated insulation monitoring and earth fault location system. Utilising proven Bender technology seen in previous variants (RS3), this Tier 3 compliant RS4 is designed to comply with Network Rail standard NR/L2/SIGELP/27725. This innovative, cutting edge technology is available as a new or retrofit solution, to deliver monitoring and protection for railway electrical systems on the UK’s rail infrastructure.
RS4 Tier 3 enables monitoring and fault location with improved accuracy and advanced sensitivity capabilities. The increased sensitivity strengthens fault location from the 20kΩ pre-warning level to 100kΩ.
The Network Rail certified Tier 3 system provides overall IR measurements, as well as feeder level fault location. Housed within a Class II GRP enclosure, Tier 3 is lighter and more compact in comparison to the previous RS3 version.
Simple to retrofit and update existing RS3 units, RS4 Tier 3 offers a cost-effective upgrade to legacy equipment that is compatible with existing Intelligent Infrastructure remote condition monitoring through data loggers.
- Tier 3 RS4 is the enhanced rail signalling protection system
- Network Rail Certificate of Acceptance PA05/04750
- For compliance with NR/L2/SIGELP/27725 Tier 3
- Improved fault location from 20KΩ to 100KΩ
- Cost effective and easy to upgrade to legacy equipment
- Housed in Class II GRP enclosure for lighter and compact design
RS4 Tier 3 is an integrated insulation monitoring and earth fault location system. Utilising proven Bender technology seen in previous variants (RS3), this Tier 3 compliant RS4 is designed to comply with Network Rail standard NR/L2/SIGELP/27725. This innovative, cutting edge technology is available as a new or retrofit solution, to deliver monitoring and protection for railway electrical systems on the UK’s rail infrastructure.
RS4 Tier 3 enables monitoring and fault location with improved accuracy and advanced sensitivity capabilities. The increased sensitivity strengthens fault location from the 20kΩ pre-warning level to 100kΩ.
The Network Rail certified Tier 3 system provides overall IR measurements, as well as feeder level fault location. Housed within a Class II GRP enclosure, Tier 3 is lighter and more compact in comparison to the previous RS3 version.
Simple to retrofit and update existing RS3 units, RS4 Tier 3 offers a cost-effective upgrade to legacy equipment that is compatible with existing Intelligent Infrastructure remote condition monitoring through data loggers.
Features
- Insulation Monitoring and Fault Location Systems used on Signal Power Systems
- Identifies decline in insulation resistance (IR) values
- Incorporates GSM-enabled data logger equipped for real time direct communication with the Intelligent Infrastructure
- Immediately identifies earth leakage faults in the power system arising from damaged cables, faulty connections, breaks in insulation, and rodent damage.
- Portable earth fault location system pinpoints location for maintenance teams
- Delivers enhanced reliability and simplified installation and commissioning.
- Facilitates planned maintenance interventions
- Dual adjustable insulation alarms – pre-warning and alarm.
- Standardised for use across Network Rail installations
- Supplied in self-contained cabinet, tested and ready for ‘plug and play’ installation and commissioning alongside existing power infrastructure systems up to AC650V.
- Integral automatic and manual test facility
- Lockable front hinged door with viewing window
Applications
- Rail signalling, relay rooms and trackside locations
- For use with trackside power distribution systems up to 650V AC, Signal Power monitoring, Points System monitoring and Level Crossing Systems monitoring.
RS4 Tier 3 Variant(s)
| Bender Part No | Network Rail PADs no |
|---|---|
| RS4 Tier 3 | 0086/001406 |
